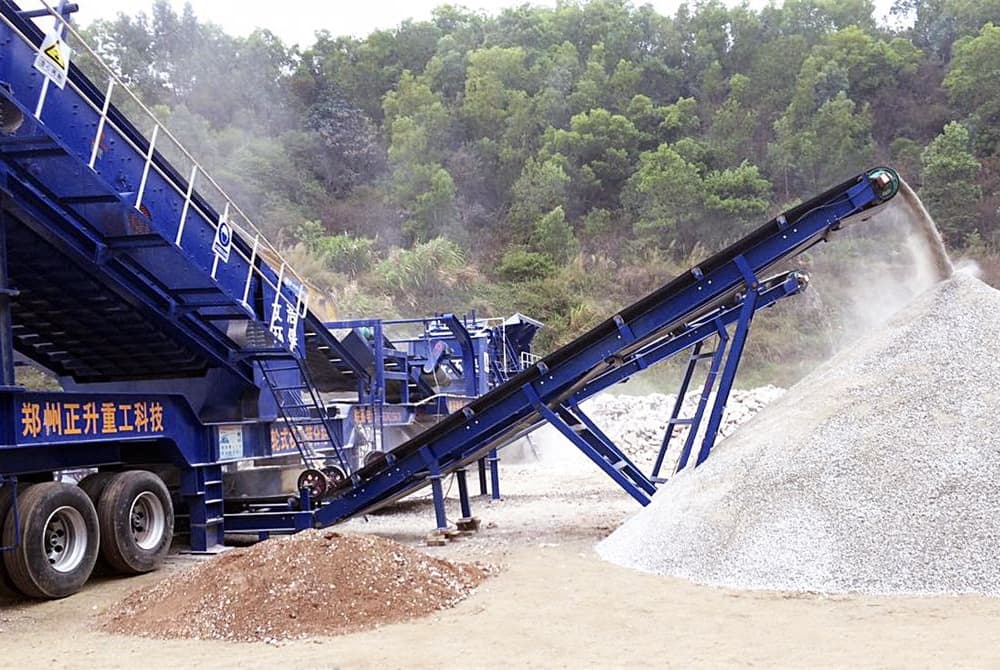

Mobile/Portable Jaw Crusher Plant (Tire)

All portable jaw crusher equipment are on-board, including jaw crusher, feeder, vibrating screen, etc. the equipment is flexible and flexible, which greatly expands the conceptual field of coarse crushing operation, and can crush materials with strength not higher than 320MP to medium particle size at one time. The equipment is flexible, convenient and mobile, which can save a lot of capital construction, demolition and transfer costs; It can crush materials on site and move with the advance of raw material mining face, thus greatly reducing the transportation cost of materials.

● Feed size: ≤ 800MM

● Processing capacity: 85-650T/H

● Scope of application: construction waste treatment, urban infrastructure, roads or construction sites, mines, coal mines, earth rock works, etc.

● Applicable materials: construction waste, reinforced concrete, pebbles, granite, basalt, iron ore, limestone, quartz, diabase, etc.

CONTACT NOW

Description

The design concept of mobile Jaw crushing station fully adapts to various situations of mobile crushing, and the obstacles of crushing site, environment and basic configuration to customers' crushing operation. It really provides customers with simple and low-cost crushing equipment, which is widely used in the processing of materials that often need relocation operations, such as mines, construction waste, metallurgy, chemical industry, building materials, water conservancy and hydropower. Users can adopt various configuration forms according to the type and scale of processed materials and the requirements of finished materials

Machine Construction

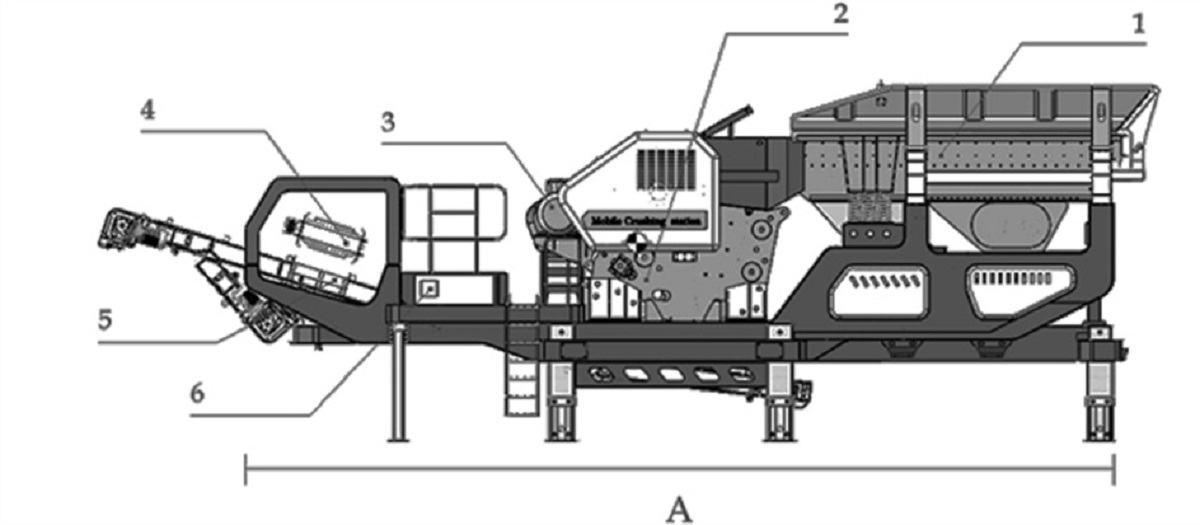

The whole mobile jaw crusher plant is composed of jaw crusher, feeder, belt conveyor, iron recover, hydraulic ship frame, belt conveyor, motor and control cabinet .The positions of main parts are marked in the structural drawing above.

Working Principle

The materials are evenly transported to the jaw crusher through the feeder. After the jaw crusher makes preliminary crushing, the finished materials are output by the conveyor for continuous crushing. The jaw mobile crushing station can remove the vibrating screen according to the actual production needs to realize the direct preliminary crushing of materials. It can be used together with other crushing equipment, and the operation is convenient and flexible.

Equipment Character

1. The tire type ship frame structure is adopted, with mobility, high vehicle chassis, small turning radius, and equipped with traction steering shaft, which can realize free transfer work

2. Oil and electricity dual-purpose design, diesel generator set can be configured to meet the needs of different customers and different working environments

3. The ship steel frame structure is adopted to make the stress points of the mobile crushing station more uniform, ensure the stability of the continuous operation of the mobile plant, and avoid the risk of overturning or falling apart during the operation of the mobile crushing station

4. The design of hydraulic support makes the mobile crushing station more reasonable. The frame not only increases the stability of the mobile station, but also greatly improves the smoothness of equipment use

5. It can realize from single application to multiple on-line applications. Through combination and orderly layout, the overall space layout is more reasonable and compact, the working space is saved, the problems such as too long and too wide production line are avoided, and the different production needs of customers are met

Product Parameter

PE SERIES

Model	Jaw Crusher	Feeder	Belt Conveyor	Iron remover	INPUT SIZE (MM)	Capacity （T/H）	Total Motor Power（KW）
ZSLY-E46-G3090	PE400x600	GZD300x90	B500x10m	Optional	≤340	16-60	≈37.4
ZSLY-E57-G3090	PE500x750	GZD300x90	B650x10m	Optional	≤425	40-110	≈63.4
ZSLY-E69-G3896	PE600x900	ZSW380x96	B800x12m	Optional	≤500	50-180	≈91.5
ZSLY-E710-W4211	PE750x1060	ZSW110x420	B1000x12m	Optional	≤630	110-320	≈136
ZSLY-E9012-W4911	PE900x1200	ZSW110x490	B1000x12m	Optional	≤750	220-450	≈161.5

PEW SERIES

Model	Jaw Crusher	Feedr	Belt Conveyor	Iron remover	Input size (MM)	Capacity （T/H）	Total Motor Power（KW）
ZSLY-C80-G3090	PEW800	GZD300x90	B500x10m	Optional	≤125	65-380	≈82.4
ZSLY-C96-G3090	PEW960	GZD300x90	B500x10m	Optional	≤180	120-455	≈97.4
ZSLY-C100-G3896	PEW1000	ZSW380x96	B800x12m	Optional	≤180	150-545	≈126.5
ZSLY-C110-W4211	PEW1100	ZSW110x420	B1000x12m	Optional	≤210	190-625	≈186
ZSLY-C125-W4911	PEW1250	ZSW110x490	B1200x12m	Optional	≤340	290-845	≈189.5

1. The tire type ship frame structure is adopted, with mobility, high vehicle chassis, small turning radius, and equipped with traction steering shaft, which can realize free transfer work

2. Oil and electricity dual-purpose design, diesel generator set can be configured to meet the needs of different customers and different working environments

PE SERIES

Model	Jaw Crusher	Feeder	Belt Conveyor	Iron remover	INPUT SIZE (MM)	Capacity （T/H）	Total Motor Power（KW）
ZSLY-E46-G3090	PE400x600	GZD300x90	B500x10m	Optional	≤340	16-60	≈37.4
ZSLY-E57-G3090	PE500x750	GZD300x90	B650x10m	Optional	≤425	40-110	≈63.4
ZSLY-E69-G3896	PE600x900	ZSW380x96	B800x12m	Optional	≤500	50-180	≈91.5
ZSLY-E710-W4211	PE750x1060	ZSW110x420	B1000x12m	Optional	≤630	110-320	≈136
ZSLY-E9012-W4911	PE900x1200	ZSW110x490	B1000x12m	Optional	≤750	220-450	≈161.5

PEW SERIES

Model	Jaw Crusher	Feedr	Belt Conveyor	Iron remover	Input size (MM)	Capacity （T/H）	Total Motor Power（KW）
ZSLY-C80-G3090	PEW800	GZD300x90	B500x10m	Optional	≤125	65-380	≈82.4
ZSLY-C96-G3090	PEW960	GZD300x90	B500x10m	Optional	≤180	120-455	≈97.4
ZSLY-C100-G3896	PEW1000	ZSW380x96	B800x12m	Optional	≤180	150-545	≈126.5
ZSLY-C110-W4211	PEW1100	ZSW110x420	B1000x12m	Optional	≤210	190-625	≈186
ZSLY-C125-W4911	PEW1250	ZSW110x490	B1200x12m	Optional	≤340	290-845	≈189.5
