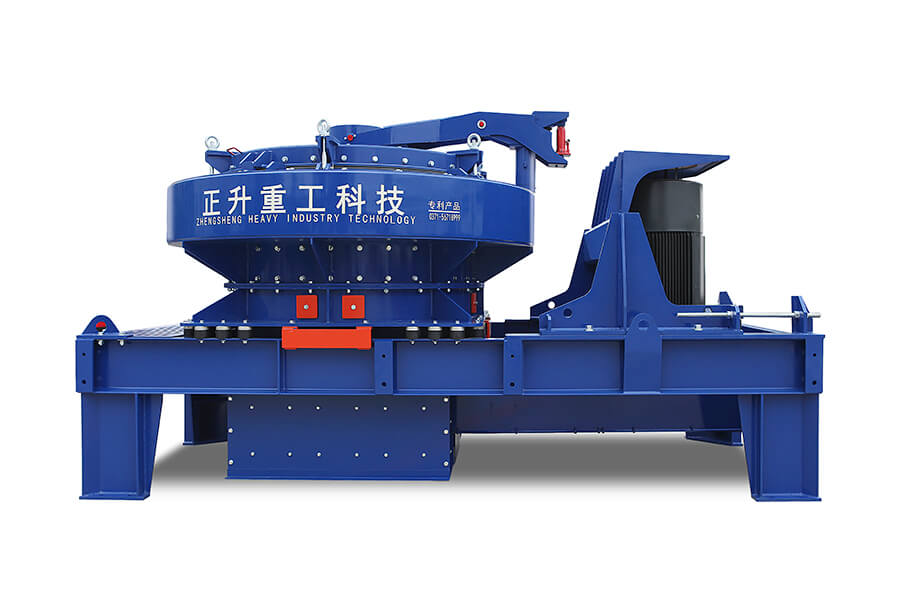

ZS high efficiency centrifugal impactive sand making machine

● Energy consumption dropping 36.5%

● 20,148,000 kwh of electricity can be saved per year

● More than double feed particle size compared with traditional VSI

● More than double sand forming rate compared with traditional VSI

● Highly automatic and intelligent

● Shaping and sand making integrated machine

● Double cavity structure, non clogging production

● Thin oil lubrication, various automatic protection measures to reduce fault shutdown time

CONTACT NOW

Description

Machine construction

It consists of nine parts: feed hopper, distributor, vortex crushing chamber, impeller, main shaft assembly, base, transmission device and support, lubrication system, etc

Working Principle

It is applicable to the crushing and shaping of all types of materials: from soft rock to hard rock, whether it is low wear material or high wear material, the sand making machine developed by our company has two kinds of "stone beating stone" and "stone beating iron".

"Stone to stone" is used for processing materials with strong abrasiveness; "Stone beating iron" is used for processing materials with weak abrasiveness.

Its working principle is that the material enters the sand making machine from the feed hopper, enters the rotating impeller from the middle of the distributor, is rapidly accelerated in the impeller, and its acceleration can reach hundreds of times the gravitational acceleration, and then the rotor is evenly distributed from the second brother of the impeller to the inside at a linear speed of 70-80m / s. The thrown materials collide with the annular lining plate, and then the materials are quickly rebounded. The rebounded materials collide with other materials again. Such a piece of material is crushed by two or more impacts, friction and grinding in the crushing chamber. The crushed materials are discharged from the lower discharge port. In the whole crushing process, the materials impact and crush each other westward, without direct contact with metal components, but crush due to impact friction with annular lining plate, so as to prolong the service life of the equipment.

Video

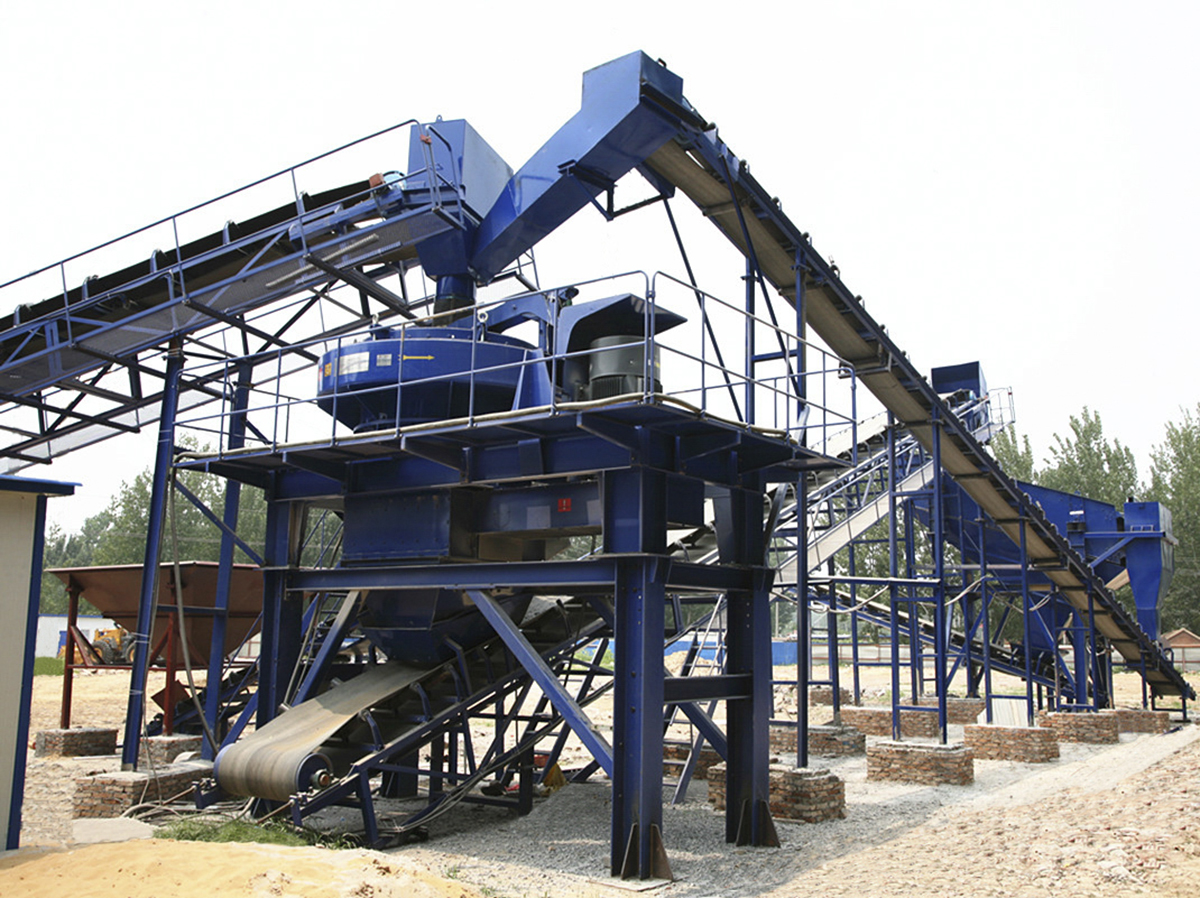

Application

1.Sand making for all kinds of rocks (limestone, pebble, granite, basalt, diabase, all kinds of tailings, etc.) .

2.Commercial concrete mixing plant, asphalt mixing plant ‘s aggregate and road surface, construction, aggregate processing.

3.Water conservancy and hydropower, highway, high-speed railway and passenger dedicated line, bridge, airport runway, municipal engineering,the sand production and stone plastic of those high-rise building.

4.Building material, metallurgy, chemical industry, mining, fire-proof material, cement, abrasive materials industry such as broken.

5.Glass, quartz sand and other high purity raw materials production and processing.

6.Also using in the production of dry mortar

Equipment Character

20,148,000 kwh of electricity can be saved per year

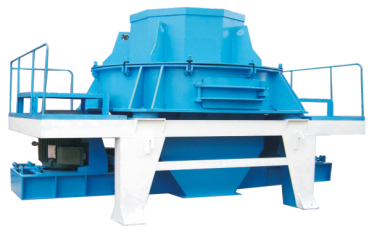

Our ZS2028（Single-motor）			Traditional VSI （Dual Motors）
	Rock types	Limestone
	The size you need	0-5mm（Most of medium sand）	0-5mm（Most of coarse sand）
	Hourly output	120-150T/H	120-150T/H
	Motor power	400KW	630KW
	Expendable parts	About 100,000 T	About 90,000T
	Maintenance time	2-3H	6-12H
	Electricity fees	400 kwh per hour*	630 kwh per hour*

1. Stronger production capacity

① The feed size is doubled. The feeding particle size is large, and the larger feeding size can reach 100mm (the larger feeding size of conventional sand making machine is about 40mm), which exceeds the feeding particle size limit of conventional Bamako series vertical shaft impact crusher.

② Double cavity discharge design. The discharge diameter is large, and the available angle of the discharge port is allowed to reach 89 °, which reduces the processing flow of materials in the cavity and realizes non blocking production

③The double cavity structure makes the crushing ratio reach a large value, and the one-time sand forming rate reaches about 45%, while the sand forming rate of conventional VSI sand making machine is 20% ~ 30%, and the sand forming rate is more than doubled.

④The double cavity design has several functions, such as sand making, shaping, sand and stone mixing, which can meet the different needs of customers

2. More obvious energy saving and consumption reduction

① The motor is of high protection grade, with low noise and high efficiency, providing stable and continuous power for the whole machine. Using single motor drive, under the same output, it can save more than twice the electric energy than the conventional sand making machine.

② Compared with the multi cavity design, the double cavity rotor delivers less air and reduces energy consumption. The energy saved can be used to improve production capacity. At the same time, the power of the dust removal device is also reduced.

3. Shorter maintenance time

All stressed parts of the equipment are protected by practical parts that are easy to replace, and the materials of these parts are optimized for their use purpose, without practical surfacing or preparing another rotor.

① The rotor assembly is modular, simple structure and convenient maintenance. The modular design of the rotor only needs to replace the severely worn parts without all replacement, so as to save the maintenance cost.

② The electro-hydraulic cover lifting device is easier to repair and maintain quickly and shorten the repair time. The repair can be completed in about 2-3 hours, while the maintenance time of conventional VSI sand making machine is long, more than half a day.

Product Parameter

TYP	INPUT SIZE (MM)	THROUGHPUT RATE (T/H)	ROTOR DIAMETER X HEIGHT	Outlet number	Speed (r/min)	Power（KW）
ZS1624	≤68	40-120	900x220MM	2	80	160
ZS1624P	≤68	60-150	900x220MM	2	80	200
ZS2028	≤89	100-380	1210x220MM	2	70	400
ZS2028P	≤89	120-410	1210x220MM	2	70	500
ZS2233	≤100	150-490	1210x330MM	2	70	630
